Google Maps

The GoogleMap component lets you embed and customize interactive Google Maps into your projects. Under the hood, our component is powered by react‑google‑maps, offering a rich set of customization options—from basic configurations like setting the center and zoom level, to advanced features such as custom markers and info windows.

Important

You will need to obtain a Google Maps API key to use the GoogleMap component on your published site. To get an API key, please follow these instructions.

Install/Update Google Maps

Anatomy

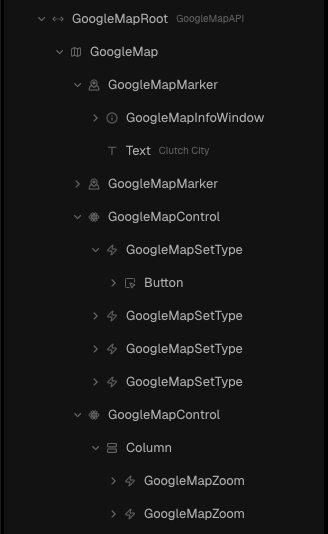

The Google Maps Library ships a template with a few examples like markers, pins, controls, etc.

Add a Google Map

Open the Insert Menu (i) > Components.
Drag the GoogleMapRoot onto your page.
Select GoogleMapRoot (GoogleMap API) and add your API key

GoogleMap requires a wrapper with a fixed size

Guides

Here are practical examples of how to use the Google Maps library:

Centering the map

GoogleMap allows you to choose a default position for the map. In this example, we’ll center Houston Zoo.

Get the latitude and longitude of your desired center.
Select GoogleMap and update the defaultCenter property to match the desired position

Right-clicking a spot on Google Maps allows you to copy its coordinates

Adding Markers

You can mark spots that you want to highlight by using Marker, Pin and InfoWindow. In this example, we’ll use the GoogleMapsMarker template that ships with:

GoogleMapsMarker
- GoogleMapInfoWindow
- GoogleMapPin

Steps

Find GoogleMapMarker from the Google Maps Library and add it onto your GoogleMap
Select the added GoogleMapMarker and configure its latitude and longitude to match the desired position

Properties

GoogleMapAPI

This component should be the root of any Google Map components. It is used to connect to the Google Maps API and the place to set the API key.

Property	Type	Default	Description
apiKey	`string`	`undefined`	Google Maps API Key (required). You need to create a Google Maps API key to use this component in production.

GoogleMap

This component is what renders the map.

Property	Type	Default	Description
defaultCenter	`{
lat: number;
lng: number;
}`	`undefined`	The default longitude and latitude for the center of the map.
defaultZoom	`number`	12	The initial resolution at which to display the map. The values range from 0 to 22, the level of detail for different zoom-levels is approximately: 1: Entire World 5: Landmass/continent 10: City 15: Streets 20: Buildings The Maps JavaScript API Documentation has some more information on this topic
disableDefaultUI	`boolean`	`false`	Disables the default UI
defaultBounds	`object`	`undefined`	An alternative way to specify the region that should initially be visible on the map. Has otherwise the same effect as `defaultCenter` and `defaultZoom`. The defaultBounds type is an extension of google.maps.LatLngBoundsLiteral that can also contain the optional property padding: number \| google.maps.Padding that represents padding in pixels for the initial view. The bounds will be fit in the part of the map that remains after padding is removed. A number value will yield the same padding on all 4 sides.
defaultHeading	`number`	`0`	The default heading of the map in degrees, measured clockwise from cardinal direction North.
defaultTilt	`number`	`0`	For vector maps, sets the angle of incidence for the map, in degrees from the viewport plane to the map plane. The allowed values are restricted depending on the zoom level of the map: for zoom-levels below 10, the maximum value is 30, for zoom above 15.5, the maximum value is 67.5 between 10 and 15.5, it is a piecewise linear interpolation ( see here for details)
defaultMapTypeId	`string`	`ROADMAP`	The initial Map mapTypeId
colorScheme	`DARK \| LIGHT \| FOLLOW_SYSTEM`	`FOLLOW_SYSTEM`	The color-scheme to be used by the map
mapId	`string`	`undefined`	The Map ID of the map. This is required if you want to make use of the Cloud-based maps styling.

GoogleMapMarker

This component can be a marker of any kind. The received children will be rendered as the marker on the marker’s position. If no children is passed, it will render a simple Pin as the marker.

This component integrates with GoogleMapInfoWindow. If GoogleMapInfoWindow is used as part of children, it will be controlled by the marker and automatically toggle the open state when the marker is clicked.

Property	Type	Default	Description
lat	`number`	`undefined`	The latitude of the marker.
lng	`number`	`undefined`	The longitude of the marker.
isInfoWindowDefaultOpen	`boolean`	`false`	If the marker’s GoogleMapInfoWindow should be open by default

GoogleMapPin

This component is used to render a pin inside a marker.

Property	Type	Default	Description
background	`string`	`null`	The background color of the pin shape. Supports any CSS color value
borderColor	`string`	`undefined`	The border color of the pin shape. Supports any CSS color value
scale	`number`	`1`	The scale of the pin
glyph	`string	Element	URL
glyphColor	`string`	`undefined`	The color of the glyph. Supports any CSS color value

GoogleMapInfoWindow

This component is used to render an info window on the map or on a specific marker. Passed children will be rendered inside the window. This includes useful links, opening times of your business, etc.

If it is placed inside a GoogleMapMarker, it will be anchored to the marker and open/close when the marker is clicked.

Property	Type	Default	Description
lat	`number`	`undefined`	The latitude of the marker (if not inside a marker)
lng	`number`	`undefined`	The longitude of the marker (if not inside a marker)
onClose	`() ⇒ void`	`undefined`	Event called when the info window is closed
